Loom Solar 5kW On-Grid Solar System
25 YEARS WARRANTY
₹340000.00₹225000.00
Out of stock
Description

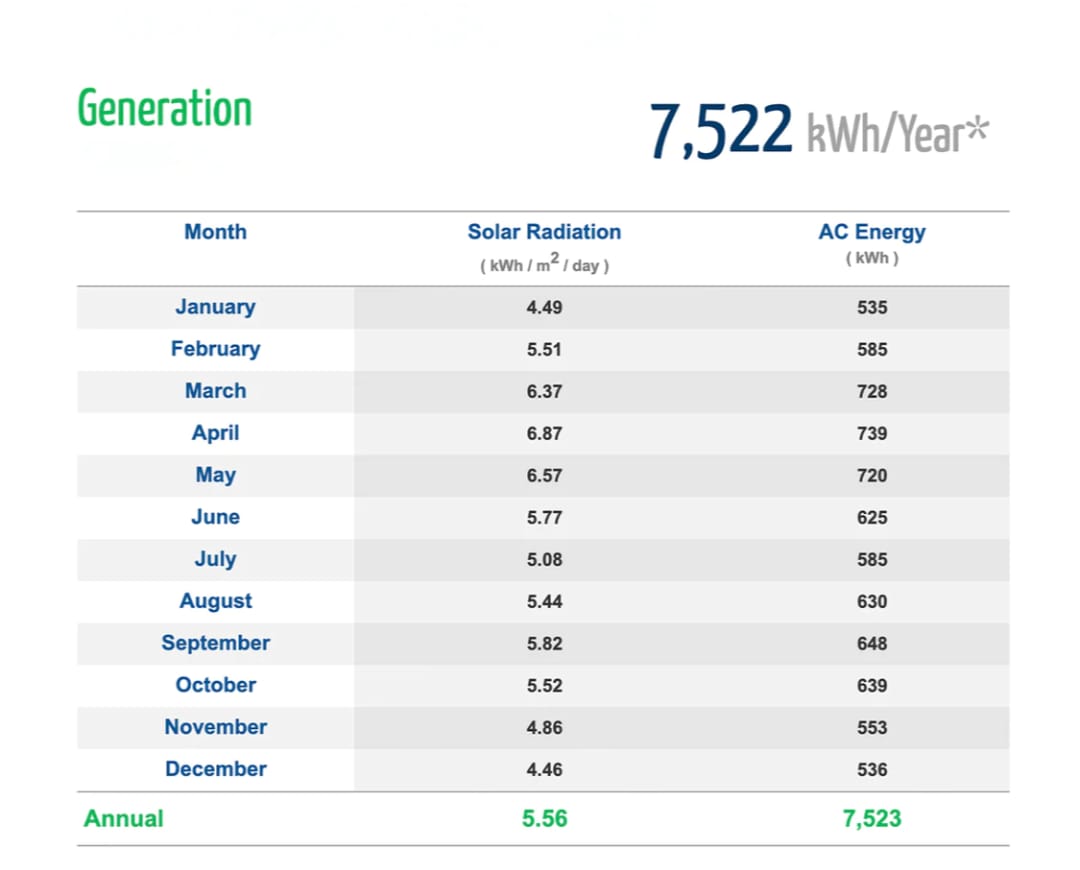

Loom solar introduces the best 5kW on-grid solar power system for homes. A 5kW solar system generates approx.20-25 units every day from morning 8 am to 5 pm which is sufficient to run multiple air conditioners along with refrigerators, televisions, fans, and lights during the day in a big house.
Brand LOOM SOLAR
Output Power550 Watts
Space Requirement350 sq. feet
Operating Voltage24 Volt
Panel TechnologyMono PERC with blocking diodes
Manufacturer warranty10 year on manufacturing defects
Performance Warranty25 Years
Additional Features6th Generation Monocrystalline Solar Cell (PID FREE) from Germany
Cell Conversion efficiency > 22% Compliance with IEC standards
Product Overview

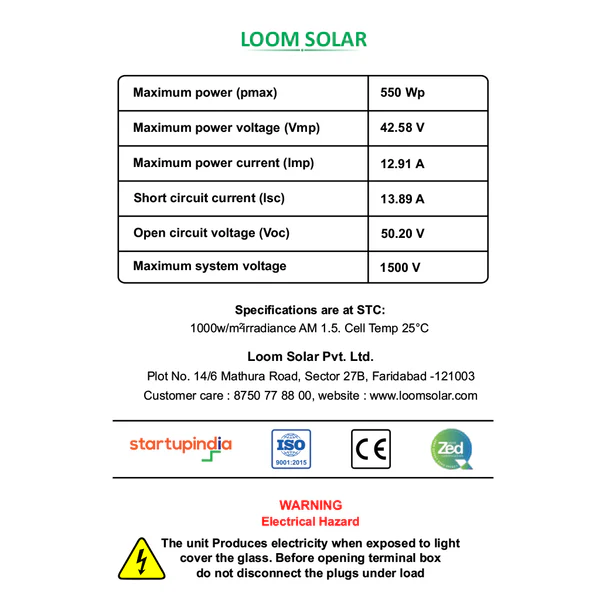

Technical
wattage (Wp)
550-590 watts
voltage at max power
42.58 volts
current at max power
12.91 amps
open-circuit voltage
50.20 volts
short circuit current
13.89 amps
Number of Cells
144
SHIPPING DETAILS
1 SPV Weight
28 Kg
Dimensions L x W x H
2278 x 1133 x 40 mm
This system is best suited for reducing your electricity bill. It will help you to cut-down your monthly bill from 60 to 100% depending upon the generation & usability.
Send generated power back to the grid during the day & utilize the same after returning home at evening. It is best suited for homes getting Rs.5000/- or above electricity bill monthly.
Eligibility - For 5kW or above sanctioned grid connections only
Customer Review

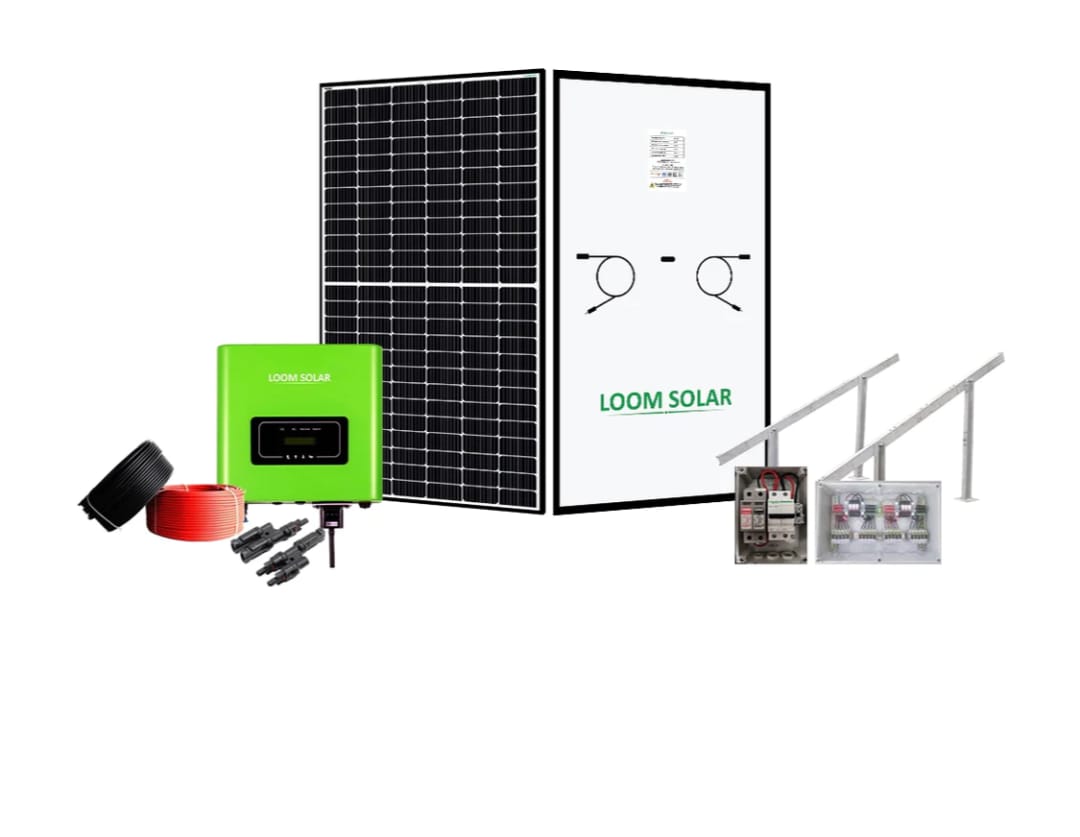

Package components
Solar Panel-Loom/Pahal
Loom Solar Panel SHARK 550-590
Solar Inverter
3kw Single Phase On-grid Inverter, FUSION 31/Power one/ksolare/dey/Pv Blink
Solar Structure
Solar Structure
Connector Type
MC4 connector 1in 1 out
Connecting wires
DC Wire 4sqmm-15mtr. Pair / AC Wire 4sqmm 2core
Protection & Safety Devices
DCDB 1IN 1OUT / ACDB Single Phase / Lightning Arrester (LA) / 2 mtr. GI Earthing electrode with Chemical Bag / Single Core AC wire for Earthing
*Installation Excluding
**Net-metering extra as per actual (on-demand basis)
disclaimer: In case, you want to go for a net - meter, it has to be applied by the homeowner itself. read the document to apply for a net meter.
Install Rooftop Solar on Easy EMI / Loan
We have partnered with leading banks to provide you on Easy EMI / Solar Loan. Check Monhtly Installment for Solar Loan.
Buying Guide
Download product Installation diagram.
