Loom Solar 10 kW On-Grid Solar System (3 Phase)
25 YEARS WARRANTY
₹660000.00₹582000.00
Out of stock
Description
Loom solar introduces the best 10kW on-grid solar power system for homes. A 10kW solar system generates approx.40-50 units every day from morning 8 am to 5 pm which is sufficient to run multiple air conditioners along with refrigerators, televisions, fans, and lights during the day in a big house.
Brand
LOOM SOLAR
Output Power
550 Watts
Space Requirement
550 sq. feet
Operating Voltage
24 Volt
Panel Technology
Mono PERC with blocking diodes
Manufacturer warranty
10 year on manufacturing defects
Performance Warranty
25 Years
Additional Features
6th Generation Monocrystalline Solar Cell (PID FREE) from Germany
Cell Conversion efficiency > 22%
Compliance with IEC standards
Product Overview

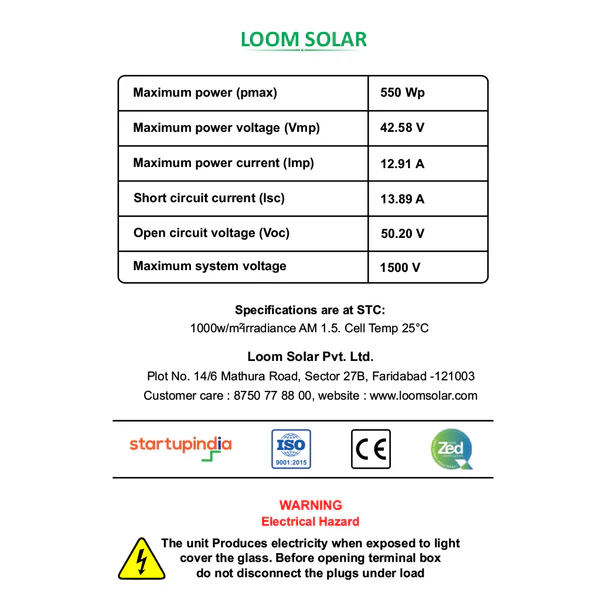

Technical
wattage (Wp)
550 watts
voltage at max power
42.58 volts
current at max power
12.91 amps
open-circuit voltage
50.20 volts
short circuit current
13.89 amps
Number of Cells
144
SHIPPING DETAILS
1 SPV Weight
28 Kg
Dimensions L x W x H
2278 x 1133 x 40 mm
This system is best suited for reducing your electricity bill. It will help you to cut-down your monthly bill from 60 to 100% depending upon the generation & usability.
Send generated power back to the grid during the day & utilize the same after returning home at evening. It is best suited for homes getting Rs.10000/- or above electricity bill monthly.
Eligibility - For 10kW or above sanctioned grid connections only
Customer Review

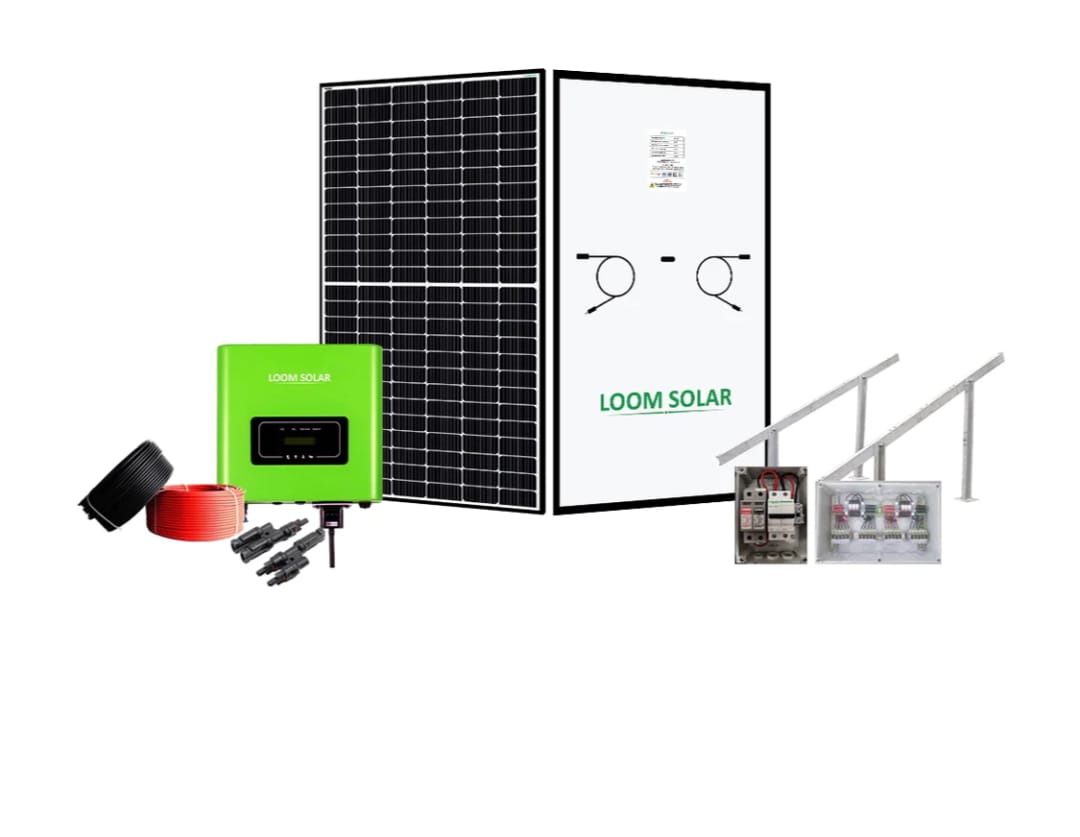

Package components

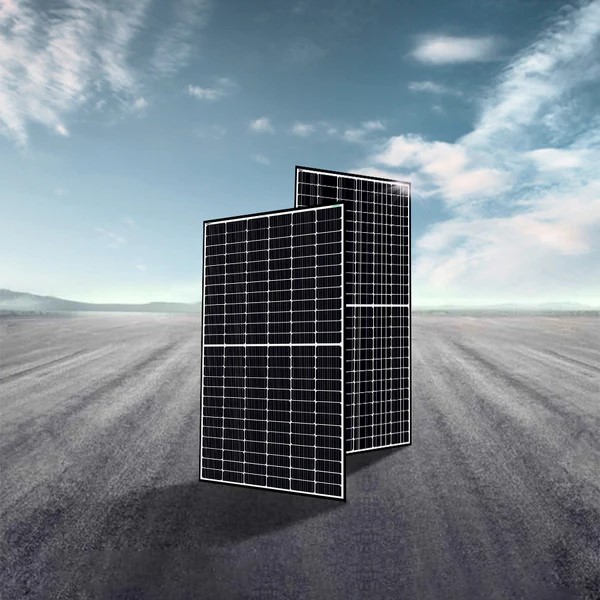

Solar Panel
Loom Solar Panel SHARK 550-575
Solar Inverter
10kw Three Phase On-grid Inverter, FUSION 103
Solar Structure
Solar Structure
Connector Type
MC4 connector 1in 1 out
Connecting wires
Loom Solar DC Wire 4sqmm Pair / AC Wire 4sqmm 2core
Protection & Safety Devices
DCDB 4IN 4OUT / ACDB 3 Phase / Lightning Arrester (LA) / GI Earthing electrode with Chemical Bag / Single Core AC wire for Earthing
*Installation Excluding
**Net-metering extra as per actual (on-demand basis)
disclaimer: In case, you want to go for a net - meter, it has to be applied by the homeowner itself. read the document to apply for a net meter.
Install Rooftop Solar on Easy EMI / Loan
We have partnered with leading banks to provide you on Easy EMI / Solar Loan. Check Monhtly Installment for Solar Loan.
Buying Guide
Download product Installation diagram.
