Loom Solar 3kW On-grid Solar System
25 YEARS WARRANTY
₹210000.00₹135000.00
Out of stock
Description
Loom solar introduces the best 3kW on-grid solar power system for homes. A 3kW solar system generates approx.15 units every day from morning 8 am to 5 pm which is sufficient to run multiple air conditioners along with refrigerators, televisions, fans, and lights during the day in a big house.
Product Overview
Solar Panel Brand (Loom/Pahal)
SHARK 550-575 (Mono-PERC/Bi-facial/Topcon Solar Panel)
Space required
180 sq. ft.
1 Panel dimension
Length – 7.9 ft, width – 3.10 ft
1-panel weight
28 kg
Solar Inverter
FUSION 31/Pv Blink/Power One/
This system is best suited for reducing your electricity bill. It will help you to cut-down your monthly bill from 60 to 100% depending upon the generation & usability.
Send generated power back to the grid during the day & ustilize the same after returning home at evening. It is best suited for homes getting Rs.3000/- or above electricity bill monthly.
Eligibility - For 3kW or above sanctioned grid connections only

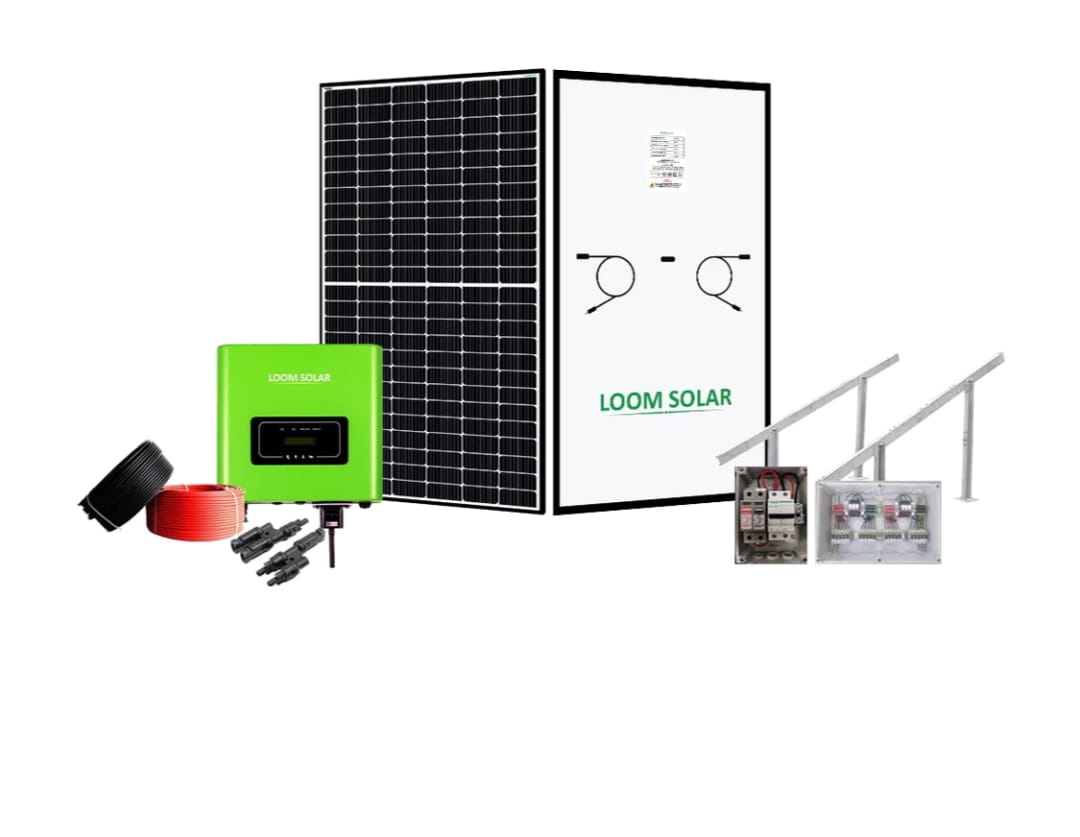

Package components
Solar Panel Loom Solar Panel SHARK 440Solar Inverter3kw Single Phase On-grid Inverter, FUSION 31Solar Structure Solar Structure Connector TypeMC4 connector 1in 1 out Connecting wires Loom Solar DC Wire 4sqmm-15mtr. Pair / AC Wire 4sqmm 2core Protection & Safety Devices DCDB 1IN 1OUT / ACDB Single Phase / Lightning Arrester(LA) / 2 mtr. GI Earthing electrode with Chemical Bag / Single Core AC wire for Earthing
*Installation Included
**Net-metering extra as per actual (on-demand basis)
disclaimer: In case, you want to go for a net - meter, it has to be applied by the homeowner itself. read the document to apply for a net meter.
Install Rooftop Solar on Easy EMI / Loan
We have partnered with leading banks to provide you on Easy EMI / Solar Loan. Check Monhtly Installment for Solar Loan.
Buying Guide
Download product Installation diagram.
